How Much Brake Pad Thickness Is Safe?
If the ABS light turns on in your dashboard but your brakes still feel normal, it can understandably raise concern. In many cases, when the ABS warning light appears but the brake pedal still feels normal and the vehicle stops properly, the primary hydraulic braking system is still working as designed. The Anti-lock Braking System has detected an electronic fault and temporarily disabled its anti-lock modulation feature, but standard braking operation remains available during normal driving conditions.
This page is part of the Brake Diagnostic Support Series from Auto Service Experts Brake Shop in San Antonio, created to help drivers understand ABS warning lights and when inspection is recommended.
Brake Pad Thickness and Safety – Diagnostic Overview
Most new brake pads measure between 8 and 12 millimeters of usable friction material, and they gradually wear down through normal braking heat and friction. When pads wear down to 3 millimeters, most manufacturers consider this the minimum safe thickness and replacement should be scheduled. If they reach 2 millimeters, they are considered unsafe and require immediate replacement to prevent rotor damage.
Brake performance directly affects stopping distance and overall vehicle control. Excessive pad wear can increase stopping distance and lead to avoidable rotor damage. You cannot accurately judge brake pad life just by looking through the wheel. Pads must be measured directly. The thickness is documented and compared to manufacturer specifications to determine safe remaining life. At Auto Service Experts in San Antonio, brake pad thickness is measured and documented during every professional brake inspection.
Read on to learn exactly how brake pad thickness is measured, what millimeter readings are considered safe, and when replacement is required based on verified inspection standards.
What Drivers Typically Ask
- How many millimeters of brake pad is still safe?
- Is 3mm too thin for brake pads?
- Can I drive with 2mm remaining?
- Why do shops recommend replacement at 4mm?
- Why are my brakes squeaking if pads still look thick?
- Why do front pads wear faster than rear pads?
Why Proper Brake Pad Measurement Matters
Brake pad thickness directly affects stopping performance, heat management, and rotor protection. Misdiagnosis occurs when pad life is estimated instead of measured. Replacement decisions should be based on:
- Measured friction material thickness

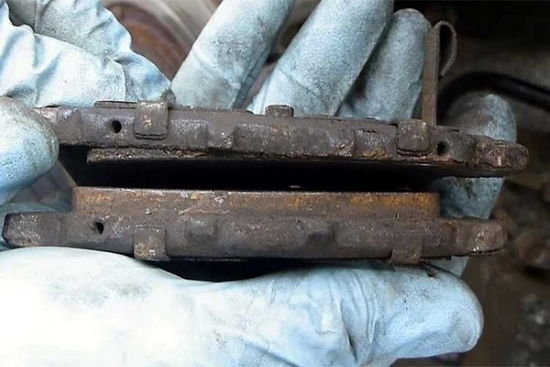

- Uneven inner vs outer pad wear
- Heat glazing or cracking
- Rotor condition
- Caliper slide performance
Professional brake inspection eliminates guesswork. It verifies the actual remaining service life.
Common Verified Causes of Low Brake Pad Thickness
Brake pad thickness reduces due to friction and heat. However, excessive or premature wear has specific root causes.
Normal Friction Wear
Brake pads convert kinetic energy into heat every time the vehicle slows down, and this heat gradually wears away the friction material. Under normal driving conditions the wear occurs evenly across the pad surface until the material approaches the manufacturer’s recommended replacement thickness.
Sticking Caliper Slides
Caliper slide pins allow the brake caliper to move freely so both pads apply equal pressure to the rotor. When corrosion, debris, or lack of lubrication restricts this movement, one pad can remain in contact with the rotor longer than intended and wear significantly faster.
Seized Caliper Piston
The caliper piston applies pressure to the brake pad during braking and should retract slightly when the pedal is released. If the piston sticks due to corrosion, contamination, or seal damage, the pad can remain in constant contact with the rotor and wear down much faster than normal.
Aggressive Driving or Towing Conditions
Frequent hard braking, steep downhill driving, or towing heavy loads places additional heat and stress on the brake system. This repeated heat cycling accelerates friction material wear and can shorten the overall service life of the brake pads.
Low-Quality Friction Material
Brake pads are manufactured using different friction compounds that affect durability, noise, and heat resistance. Lower-quality materials can wear down more quickly or become glazed under high temperatures, reducing braking efficiency and shortening pad life.
Rotor Surface Irregularities
Brake rotors must maintain a smooth and consistent surface for the pads to contact evenly. Excessive rotor runout, scoring, or uneven wear can cause the pads to contact the rotor inconsistently, accelerating friction material degradation and uneven pad wear.
Professional Diagnostic Process
Our ASE CodeLogic diagnostic workflow includes:
- Remove wheel for direct access – Allows the technician to visually inspect the entire brake assembly and accurately measure pad thickness without obstruction.
- Measure outer pad friction material – Confirms how much usable pad material remains on the outer brake pad surface.
- Measure inner pad friction material – Verifies that the inner pad is wearing evenly and not experiencing accelerated wear due to caliper issues.
- Inspect rotor surface condition – Checks for scoring, heat spots, cracking, or uneven wear that may affect braking performance.
- Check caliper slide movement – Ensures the caliper moves freely so both pads apply equal pressure to the rotor during braking.
- Verify piston retraction – Confirms the caliper piston releases properly when the brake pedal is released to prevent constant pad contact.
- Measure rotor thickness and runout – Determines whether the rotor is within manufacturer specifications and free from excessive warping
- Document findings with digital measurements – Compare to manufacturer specifications – Confirm whether the measured components meet the vehicle manufacturer’s safe operating limits.
- Provide written condition report – Gives the driver a clear explanation of brake condition and any verified service recommendations.
Parts Commonly Replaced For Worn Brake Pads
When brake pad thickness reaches the service limit, related brake components are inspected and replaced only if testing confirms they are worn or damaged.
Brake pads
Replaced when the friction material reaches the minimum safe thickness, when inner and outer pads wear unevenly, or when the pad is close to the metal backing plate.
Brake rotors
Replaced or resurfaced when rotor thickness is too thin, when measurable warping is present, or when damage from worn pads prevents proper braking contact.
Anti-rattle clips and hardware kits
Replaced when corrosion, distortion, or loss of tension allows the pads to shift or wear unevenly.
Caliper slide pins and boots
Replaced when rust, lack of lubrication, or torn protective boots prevent smooth caliper movement and cause uneven pad pressure.
Brake wear sensors (if equipped)
The tone ring provides the signal reference for the wheel speed sensor. Cracked, rust-expanded, or damaged teeth interrupt the signal pattern and cause stored fault codes.
Brake calipers (only when confirmed restricted)
Damaged wiring, corrosion, or high resistance in the harness can disrupt communication between the sensor and the module. Circuit integrity testing confirms these faults before replacement.
Brake fluid (when inspection confirms need)
Recommended when testing shows contamination or moisture buildup that can reduce braking performance.
What Brake Pad Thickness Measurement Is NOT
When evaluating brake pad thickness, it is important to understand what this measurement does not indicate. Thin brake pads are a normal wear condition and do not automatically mean there is a failure in the hydraulic braking system, ABS system, or other brake components. Pad thickness simply reflects how much usable friction material remains before replacement is required.
At Auto Service Experts in San Antonio, our brake technicians verify the exact millimeter thickness of the pads and inspect the surrounding brake components before recommending service. This measured inspection approach helps prevent unnecessary parts replacement and ensures the correct portion of the brake system is properly evaluated.
Brake Rotor Thickness
Rotor minimum thickness is separate from pad thickness and measured independently.
Brake Fluid Level
Low fluid may indicate pad wear, but it does not confirm safe thickness without inspection.
ABS Warning Light
An illuminated ABS light does not directly indicate pad thickness condition.
Brake Pad Thickness Safety Thresholds and Replacement Guidelines
Brake pad safety is determined by the exact millimeters of friction material remaining, verified through direct measurement.
General verified thresholds:
- 8–12mm: New pad thickness
- 6mm: Mid-life condition
- 4mm: Recommended replacement planning
- 3mm or less: Most manufacturers consider 3mm the minimum safe thickness before replacement is required
- 2mm or less: Considered unsafe and requires immediate replacement to prevent rotor damage
Brake Pad Thickness Safety Table
| Thickness (mm) | Condition | Action Required |
|---|---|---|
| 8–12mm | New | No service needed |
| 6mm | Moderate wear | Monitor at next inspection |
| 4mm | Late wear | Schedule replacement soon |
| 3mm | Minimum safe thickness (schedule replacement) | Replacement recommended |
| 2mm | Unsafe | Immediate replacement required |
Driving style, vehicle weight, and heat load influence remaining service interval.
Pads are replaced before backing plate contact occurs to protect rotors and maintain braking efficiency.
Further Resources Related Brake System
Brake Pad Safety Considerations
Brake pads are considered safe when sufficient friction material remains to:
- Maintain consistent stopping distance
- Prevent rotor damage
- Manage heat effectively
- Avoid metal-to-metal contact
Waiting until complete pad depletion increases repair cost due to rotor damage.
Measured inspection allows replacement at the correct interval, preventing both premature service and excessive wear.
How Repeat Failures Are Prevented
Long-term brake pad reliability requires:
- Cleaning and lubricating caliper slides
- Proper torque application
- Quality friction material selection
- Rotor surface preparation
- Bedding-in procedure after installation
Correct installation ensures predictable wear patterns and maximum service life.
If you are unsure about your brake pad thickness, our San Antonio brake inspection process includes documented millimeter measurements and a written condition report.
Related Brake Symptoms (Diagnostic Navigation)
Explore other Brake Diagnostic Support pages:
- If the brake pedal drops too low or becomes difficult to press, this guide explains how technicians diagnose hydraulic pressure loss and internal bypass conditions.
- If you experience steering wheel or vehicle vibration during braking, this page covers how rotor variation, suspension influence, and braking surface conditions are evaluated.
- If you hear a squeak coming from the brake pedal area, this resource explains how technicians inspect pedal pivots, booster linkage, and interior mechanical noise sources.
- If your vehicle produces a metal grinding sound while braking, this guide explains how technicians identify worn pads, rotor damage, or caliper-related friction problems.
- If a red brake system warning light appears on the dashboard, this page explains how hydraulic, electronic, and fluid-level faults are diagnosed within the primary brake monitoring system.
Frequently Asked Questions About Brake Pad Thickness
Is 4mm brake pad thickness safe?
4mm indicates mid-to-late wear. Replacement should be planned soon to maintain optimal braking performance.
Can I drive with 2mm brake pads?
2mm is considered unsafe and requires immediate replacement to prevent rotor damage.
How many millimeters are new brake pads?
Most new pads measure between 8 and 12mm of friction material.
Why do inner brake pads wear faster?
Restricted caliper slides or piston return issues commonly cause uneven inner wear.
Do rear brake pads last longer than front?
Typically yes, due to front-biased braking load. However, vehicle design affects wear distribution.
Will low brake fluid tell me pad thickness?
Fluid level may drop as pads wear, but it does not replace physical measurement.
